The A1200NG is due for delivery in Q1/2025. Pre-order at this special price available until 20 January 2025.

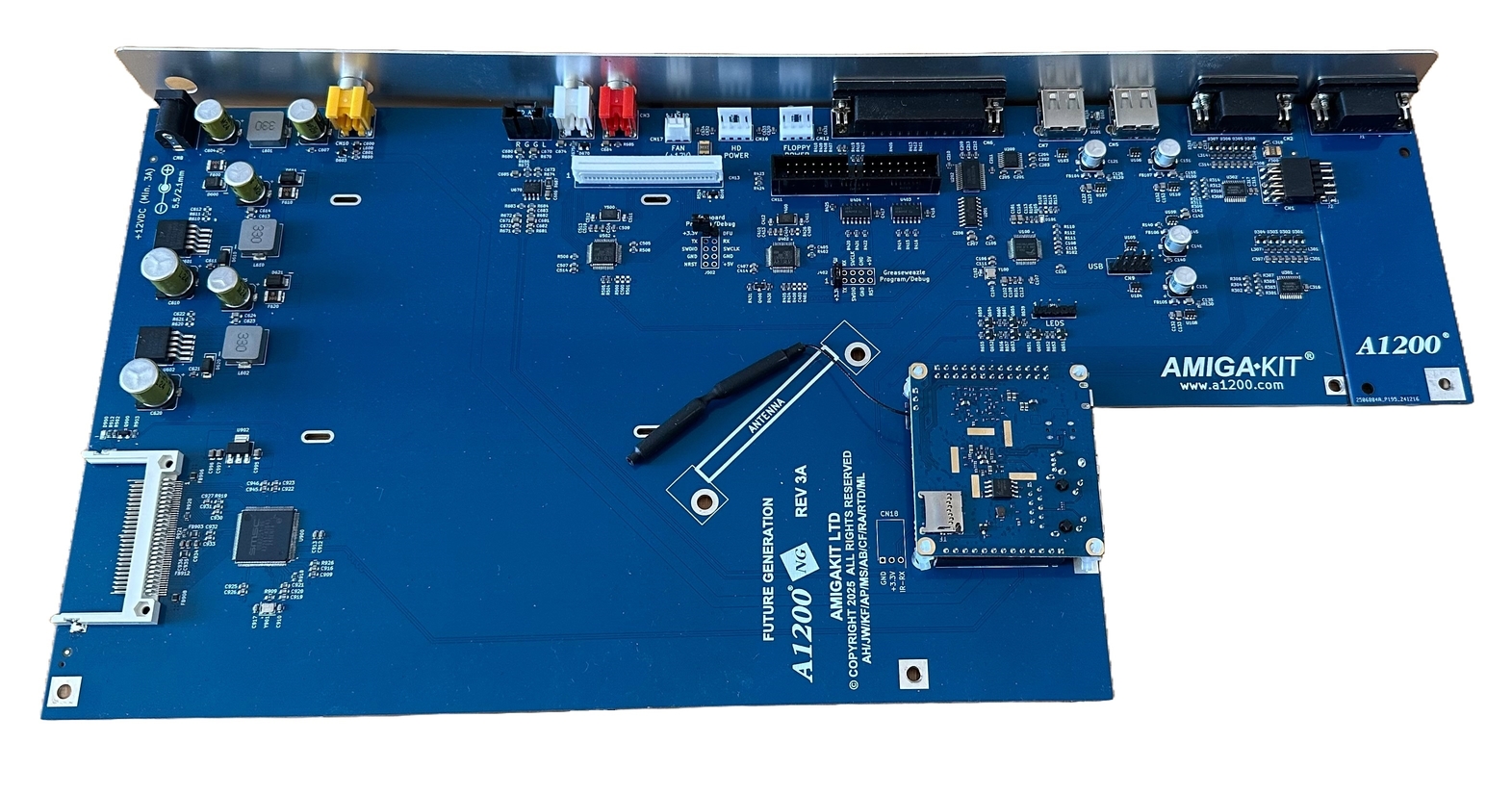

A1200NG motherboard revision 3A

The A1200NG motherboard fits into original and remake Amiga 1200 desktop cases. The ports align with the holes in the case using the supplied backplate.

Features:
  Games menu: add, edit & launch ADF/HDF/WHDBoot games, scene demos & apps (OCS, ECS, AGA).
  AmiBench: 1080p screenmode with 32-bit icon set. Run Classic 68k programs.
  Dual 9-pin Joystick Ports: accepts Commodore compatible joysticks ¹
  HDMI compatible 1080p output: plugs into HDMI compatible television or monitor
  Wireless Internet: connects to AmiSphere for system updates and email
  Bluetooth: optionally output audio to Bluetooth speaker
  34-pin Floppy Header: read and write to real 880K floppy disks (Greaseweazle compatible)
  RS232 Serial Port (DB25)
  System RAM: 4GB in total. 1GB Fast Memory allocated for AmiBench.
  Hard Drive: 64GB or 128GB option.
  Internal USB headers for connection of optional USB to SATA or USB to IDE adapters.
  External USB headers for connection of DrawBridge USB floppy disk drives, Mice, MIDI interfaces, Flash Drives.


Pre Installed Software:
  AmiBench Release V46
  Personal Paint (PPaint) V7.4
  OctaMED V8
  Directory Opus V4
  Final Writer V7.2
  YAM email client
  JST
  Utilities: EaglePlayer, HippoPlayer, Dock, Clock, Calendar
  Games: Super Skidmarks, Thunderhell, Virtual GP, T-Racer


What is included?
  A1200NG motherboard
  ARM module (H618 Quad Core 1.5Ghz/4GB RAM)
  64GB or 128GB micro SD card
  HDMI cable with backplate (fits underneath floppy drive)
  Metal backplate for ports
  Power Supply Unit
  Printed Colour Manual
  A1200NG case badge
  Silver foil serial case sticker
  Hex bolts and screws


Product options:
  A1200 9-pin joystick port 1 board
  A1200 Triple LED adapter module
  A1200 motherboard insulation layer


Rear External Ports:
  9-pin Joystick
  USB ports
  25-pin Serial Port
  Left / Right Audio RCA audio out
  Composite (no driver support)
  Power In Port
  Compact Flash reader


Internal Connectors:
  34-pin Floppy Disk Drive header
  USB header (dual)
  A1200 LED module header
  A1200 keyboard ribbon header (31 pin)
  4-pin Power header for optional floppy disk drive
  4-pin Power header for optional SATA/IDE hard drive
  2-pin Fan header


Speed Performance
The A1200NG delivers the following speed rating of 257 MIPs in SysInfo.


¹ single 9-pin joystick port is available on motherboard and a second 9-pin joystick port is attached using a plug in board (product option).
